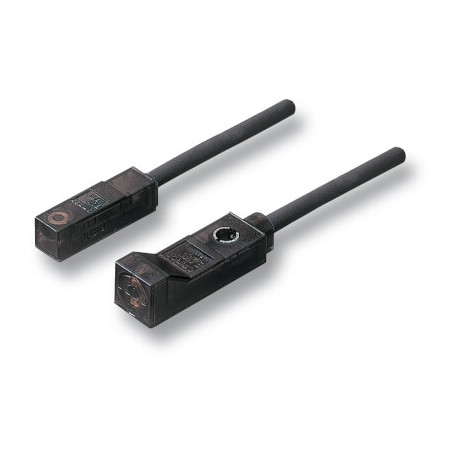

OMRON E2S-Q14 2M E2S-Q14 2M E2S 7010F E2SQ142MOMS OMRON Miniature Square Front 3h NoEnr 1.6 mm NPN NC Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2S-Q14 2M E2S 7010F E2SQ142MOMS OMRON Miniature Square Front 3h NoEnr 1.6 mm NPN NC Cable 2m

E2S-Q14 2M

E2S 7010F

E2SQ142MOMS

OMRON

1 Pcs.

Miniature Square Front 3h NoEnr 1.6 mm NPN NC Cable 2m Miniature rectangular Inductive, front face sensing, unshielded, 1.6mm, NPN, NC, 2M cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Miniature square inductive sensor in plastic housing

The E2S family features miniature block style plastic housings for simple mounting on flat surfaces. The durable plastic housing with front or side facing sensing surfaces, provide best value-performance ratio for machine part movement detection.

  • Miniature housing with long sensing ranges
  • Front and side facing sensing surfaces
  • Simple mounting with one screw
  • IP67

Ordering information

DC 2-wire

Size in mm

(H × W × D)



Sensing distance

Sensing face

Order code (pre-wired types with 1 m cable length)



Operation mode NO

Operation mode NC

19 × 6 × 6

-

¢

1.6 mm

¢

-

E2S-W11 1M

E2S-W12 1M

-

¢

E2S-Q11 1M

E2S-Q12 1M

23 × 8 × 8

2.5 mm

¢

-

E2S-W21 1M

E2S-W22 1M

-

¢

E2S-Q21 1M

E2S-Q22 1M

DC 3-wire

Size in mm

(H × W × D)



Sensing distance

Sensing face

Output specifications

Order code (pre-wired types with 1m cable length)



Operation mode NO

Operation mode NC

19 × 6 × 6

-

¢

1.6 mm

¢

-

NPN

E2S-W13 1M

E2S-W14 1M

-

¢

E2S-Q13 1M

E2S-Q14 1M

27 × 8 × 8

2.5 mm

¢

-

E2S-W23 1M

E2S-W24 1M

-

¢

E2S-Q23 1M

E2S-Q24 1M

19 × 6 × 6

1.6 mm

¢

-

PNP

E2S-W15 1M

E2S-W16 1M

-

¢

E2S-Q15 1M

E2S-Q16 1M

23 × 8 × 8

2.5 mm

¢

-

E2S-W25 1M

E2S-W26 1M

-

¢

E2S-Q25 1M

E2S-Q26 1M

Specifications

Item

E2S-W1

E2S-Q1

E2S-W2

E2S-Q2

Sensing distance

1.6 mm±10%

2.5 mm±15%

Response frequency

1 kHz min.

Power supply voltage (operating voltage)

12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.

Protective circuits

Surge suppressor; power supply reverse polarity protection

Ambient temperature

Operating

-25 to 70°C

Storage

-40 to 85°C (with no icing or condensation)

Degree of protection

IEC60529 IP67

Material

Case

Polyarylate


ETIM for 233112 Sensors (EC002714)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) Other
Type of interface (EF006977) None
Switching distance (EF003647) 1.6 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
