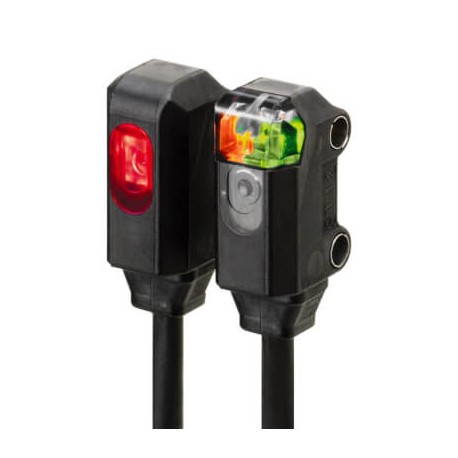

OMRON E3T-ST12 2M E3T-ST12 2M E3T 1002D E3TST122M OMRON Thumbnail 3h Barrier 1m Lateral NPN Osc. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-ST12 2M E3T 1002D E3TST122M OMRON Thumbnail 3h Barrier 1m Lateral NPN Osc.

E3T-ST12 2M

E3T 1002D

E3TST122M

OMRON

1 Pcs.

Thumbnail 3h Barrier 1m Lateral NPN Osc. Photoelectric sensor, through-beam, 1m, DC, 3-wire, NPN, dark-on, side view, 2m cable (requires 2 brackets)

Automation > Through beam photoelectric sensor
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

E3T-ST12 2M E3T 1002D E3TST122M OMRON Thumbnail 3h Barrier 1m Lateral NPN Osc. is a miniature through-beam photoelectric sensor utilized for accurate component tracking in tight machinery layouts. Paired optical transmitter and receiver configurations offer robust sensing capabilities where physical space is severely limited. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Sensing mode (EF007503): Dark switching
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboid, M2 mountingSensing methodThrough-beamSensing distance1000 mmSensing distance (min.)0 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)7 mmProduct Height (unpacked)18.5 mmProduct Depth (unpacked)9.5 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP54

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
