OMRON E3T-SR43-C 2M E3T-SR43-C 2M E3T 3067M E3TSR43C2M OMRON Thumbnail 3h mirrorless 200mm PNP Light View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-SR43-C 2M E3T 3067M E3TSR43C2M OMRON Thumbnail 3h mirrorless 200mm PNP Light

E3T-SR43-C 2M

E3T 3067M

E3TSR43C2M

OMRON

1 Pcs.

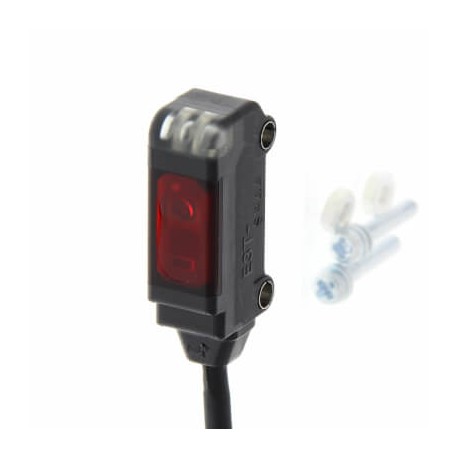

Thumbnail 3h mirrorless 200mm PNP Light Photoelectric sensor, retro-reflective, miniature, side view, 200mm, PNP, L-on, 2m cable, M2 mounting, reflector not included

Automation > Retroreflective photoelectric sensor
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron thumbnail photoelectric sensor, catalog number E3T-SR43-C 2M, is designed for compact machine spaces where standard sensors cannot fit, providing precise object detection in miniaturized automation equipment. Electronics assembly and medical device manufacturing units often incorporate these miniature optical components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light switching
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 0
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboid, M2 mountingSensing methodRetro-reflectiveSensing distance200 mmSensing distance (min.)30 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeLight-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)7 mmProduct Height (unpacked)20.6 mmProduct Depth (unpacked)11 mmType of lightPolarized red lightPower supply voltage12-24 VDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
