OMRON E3T-SL21 2M E3T-SL21 2M E3T 1011C E3TSL212M OMRON Thumbnail 3h Dslr 30mm Lateral NPN Light View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-SL21 2M E3T 1011C E3TSL212M OMRON Thumbnail 3h Dslr 30mm Lateral NPN Light

E3T-SL21 2M

E3T 1011C

E3TSL212M

OMRON

1 Pcs.

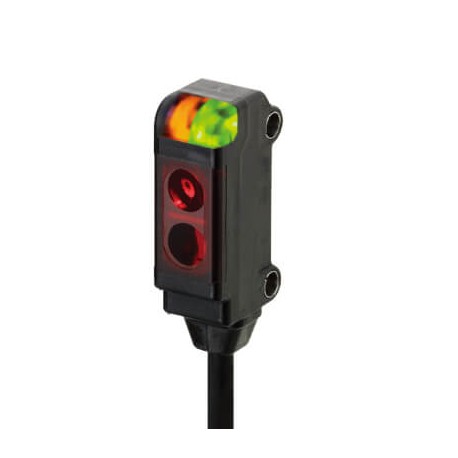

Thumbnail 3h Dslr 30mm Lateral NPN Light Photoelectric sensor, diffuse, 30mm, DC, 3-wire, NPN, light-on, side view, 2m cable (requires bracket)

Automation > Light scanner with background masking
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3T-SL21 2M is a miniature photoelectric sensor engineered for reliable object sensing within restricted installation spaces. Thumbnail-sized optical sensors deliver precise point detection for small components in automated machinery and electronics assembly. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Sensing mode (EF007503): Light switching
  • Triangulation (EF008296): Background fade-out
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboid, M2 mountingSensing methodLimited reflectiveSensing distance30 mmSensing distance (min.)5 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeLight-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)7 mmProduct Height (unpacked)24.5 mmProduct Depth (unpacked)11 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
