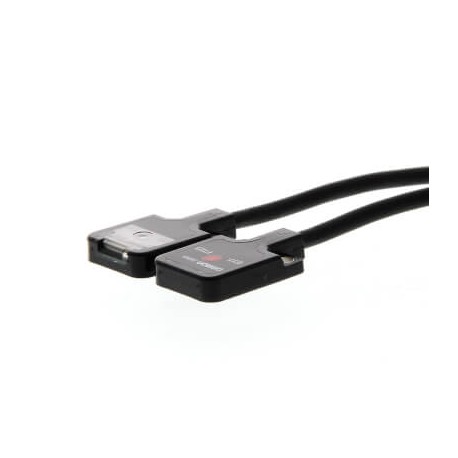

OMRON E3T-FT24 2M E3T-FT24 2M E3T 1130F E3TFT242M OMRON Thumbnail 3h Barrier 300mm Flat NPP Osc. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-FT24 2M E3T 1130F E3TFT242M OMRON Thumbnail 3h Barrier 300mm Flat NPP Osc.

E3T-FT24 2M

E3T 1130F

E3TFT242M

OMRON

1 Pcs.

Thumbnail 3h Barrier 300mm Flat NPP Osc. Photoelectric sensor, through-beam, miniature, 300mm, DC, 3-wire, PNP, dark-on, flat-view, 2m cable

Automation > Through beam photoelectric sensor
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A photoelectric sensor system utilizes matched optical components to detect objects by interrupting a continuous light beam across automated detection zones. Automated machinery relies on these compact cuboid sensors for precise part verification in restricted installation spaces. The E3T-FT24 2M Omron photoelectric unit delivers PNP DC switching performance within a protected plastic housing.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Sensing mode (EF007503): Dark switching
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboid, M2 mountingSensing methodThrough-beamSensing distance300 mmSensing distance (min.)0 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeDark-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)12 mmProduct Height (unpacked)19 mmProduct Depth (unpacked)3.5 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP67
