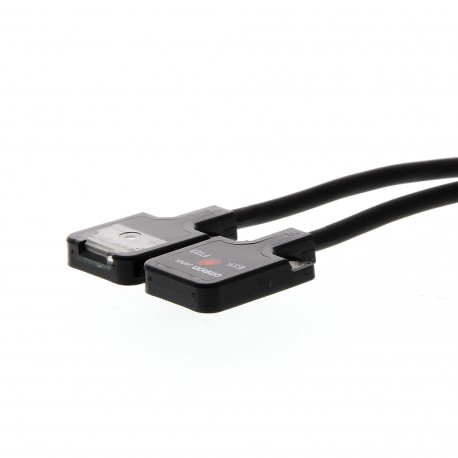

OMRON E3T-FT22 2M E3T-FT22 2M E3T 1131D E3TFT222M OMRON Thumbnail 3h Barrier 300mm Flat NPN Osc. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-FT22 2M E3T 1131D E3TFT222M OMRON Thumbnail 3h Barrier 300mm Flat NPN Osc.

E3T-FT22 2M

E3T 1131D

E3TFT222M

OMRON

1 Pcs.

Thumbnail 3h Barrier 300mm Flat NPN Osc. Miniature 3h Barrier 300mm Flat NPN Osc. Photoelectric sensor, through-beam, miniature, 300 mm, DC, 3-wire, NPN, dark-on, flat-view, 2 m cable

Automation > Through beam photoelectric sensor
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3T-FT22 2M is a photoelectric barrier sensor pair utilized for precise part detection and process monitoring in confined automated environments. Optical sensors serve as reliable feedback elements in sorting stations, packaging equipment, and assembly cells where accurate presence sensing is critical.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Dark switching
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 0
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
  • Small size with precision pinpoint LED where space is crucial
  • 3.5mm flat model with reliable background suppression and small black/white error
  • Unique optical alignment technology ensuring minimal deviation of optical axis
  • High EMC and ambient light immunity
