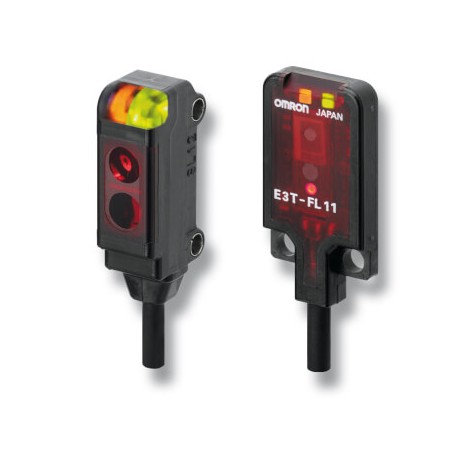

OMRON E3T-FD13-M5J 0,3M E3T-FD13-M5J 0,3M E3T 1142M E3TFD13M5J03M OMRON Thumbnail 3h Dslr 30mm PNP Light 0,3 M+M 12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3T-FD13-M5J 0,3M E3T 1142M E3TFD13M5J03M OMRON Thumbnail 3h Dslr 30mm PNP Light 0,3 M+M 12

E3T-FD13-M5J 0,3M

E3T 1142M

E3TFD13M5J03M

OMRON

1 Pcs.

Thumbnail 3h Dslr 30mm PNP Light 0,3 M+M 12 Photoelectric sensor, diffuse, 5-30 mm, DC, 3-wire, PNP, light-on, flat-form, M2 mounting, M8 3-pin cable end connector 0.3 m

Automation > Diffuse reflective photoelectric sensor
E3T

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3T-FD13-M5J 0,3M is a miniature photoelectric sensor used in compact machinery assemblies where space is limited but precise optical detection is required. Thumbnail-style sensors help track tiny components and verify mechanical positioning on high-speed automated production lines. Pricing, product availability, and lead times are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cuboid
  • Degree of protection (IP): IP67
  • Material of optical surface: Plastic
  • Sensing mode: Light switching
  • Type of electric connection: Cable with connector
  • Housing material: Plastic
  • Type of light: Polarity free red light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: PNP
  • Operation agent-safety class: Safety class 0
  • With communication interface RS-485: No
  • Analogue output -10 V ... +10 V: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 V ... 10 V: No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
