View larger
Images are for illustrative purposes only. Please refer to data sheet for details

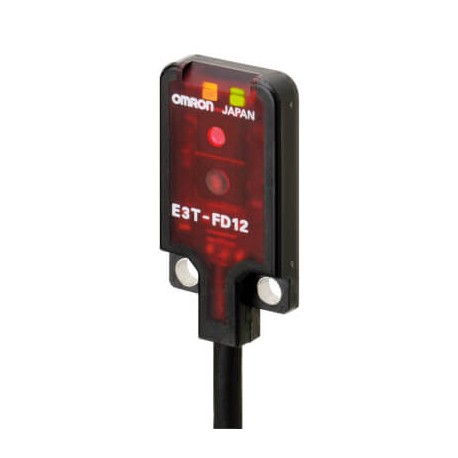

E3T-FD12 2M E3T 1010E E3TFD122M OMRON Thumbnail 3h Dslr 30mm Flat NPN Osc.
E3T-FD12 2M
E3T 1010E
E3TFD122M
OMRON
1 Pcs.
Thumbnail 3h Dslr 30mm Flat NPN Osc.
Photoelectric sensor, diffuse, 30mm, DC, 3-wire, NPN, dark-on, flat, 2m cable (requires E39-L119 bracket)
Automation > Diffuse reflective photoelectric sensor
E3T
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboid, M2 mountingSensing methodDiffuse reflectiveSensing distance30 mmSensing distance (min.)5 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)12 mmProduct Height (unpacked)24 mmProduct Depth (unpacked)3.5 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP67
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Setting procedure (EF003994) | Other |
| Material of optical surface (EF004134) | Plastic |
| Sensing mode (EF007503) | Dark switching |
| Type of interface for safety communication (EF003956) | Other |
| Type of switch function (EF003963) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | NPN |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Explosion safety category for gas (EF003997) | None |
| With communication interface RS-485 (EF007314) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface DeviceNet (EF007308) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With communication interface AS-Interface (EF007306) | No |
| With other analogue output (EF007485) | No |
| With restart blockage (EF004054) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 30 mm |
| AWG-number (EF007010) | 27 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Wavelength of the sensor (EF004132) | 650 nm |
| Response time (EF004094) | 1 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Transmission range of the safety field (EF004098) | 0.03 m |
| Width sensor (EF007094) | 12 mm |
| Height of sensor (EF007283) | 20.8 mm |
| Max. output current (EF001315) | 50 mA |
| Length of sensor (EF007334) | 3.5 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Operating distance (EF004121) | 5 mm |
| Rated control supply voltage DC (EF003980) | 10.8 V |
| Ambient temperature (EF002386) | -25 °C |
