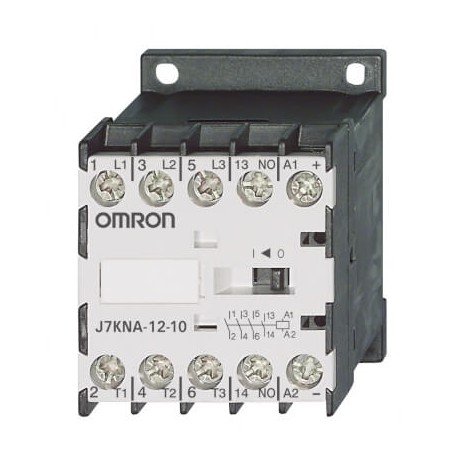

OMRON J7KNA-12-10 24VS J7KNA-12-10 24VS J7KA9071E J7KNA121024VS OMRON 5.5 KW / 12A /AC3 1NO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-12-10 24VS J7KA9071E J7KNA121024VS OMRON 5.5 KW / 12A /AC3 1NO

J7KNA-12-10 24VS

J7KA9071E

J7KNA121024VS

OMRON

10 Pcs.

5.5 KW / 12A /AC3 1NO Contactor, 3-pole, 12 A/5.5 kW AC3 (20 A AC1) + 1M auxiliary with diode suppressor, 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KNA-12-10 24VS J7KA9071E J7KNA121024VS OMRON 5.5 KW / 12A /AC3 1NO functions as an industrial contactor built to govern motor startup and heavy load switching in automation loops. Such switching hardware is commonly incorporated into control panels for precise remote electrical management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]5.5 kWRated current AC3 at 400 V [A]12 ARated current AC1 at 690 V [A]20 ARated current AC1 at 440 V [A]12 AFeaturesCoil with diodeTerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mmPoles3
