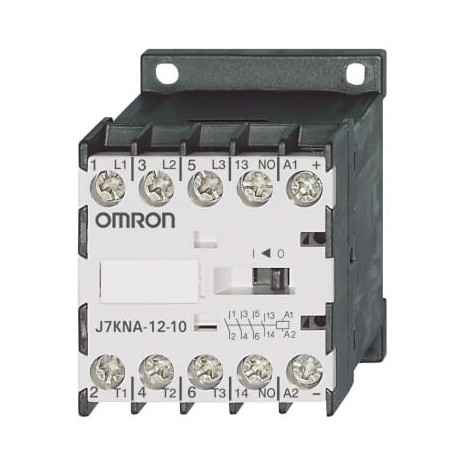

OMRON J7KNA-12-10 230 J7KNA-12-10 230 J7KA9052R J7KNA1210230 OMRON 5.5 KW / 12A / AC3 1NO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-12-10 230 J7KA9052R J7KNA1210230 OMRON 5.5 KW / 12A / AC3 1NO

J7KNA-12-10 230

J7KA9052R

J7KNA1210230

OMRON

10 Pcs.

5.5 KW / 12A / AC3 1NO Contactor, 3-pole, 12 A/5.5 kW AC3 (20 A AC1) + 1M auxiliary, 230 VAC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The J7KNA-12-10 230 Omron contactor is a reliable electromechanical switching device built for integrating into compact industrial motor starters and control panels. Such components provide essential automated switching for small drives and auxiliary actuators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 12 A
  • Rated operation power at AC-4, 400 V (EF008496): 5.5 kW
  • Rated control supply voltage AC 60 Hz (EF003979): 230 V
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V

More info

▲
Main Contacts NO3Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage230 VOperation voltageACRated power AC2, AC3 at 400 V [kW]5.5 kWRated current AC3 at 400 V [A]12 ARated current AC1 at 690 V [A]20 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
