View larger
Images are for illustrative purposes only. Please refer to data sheet for details

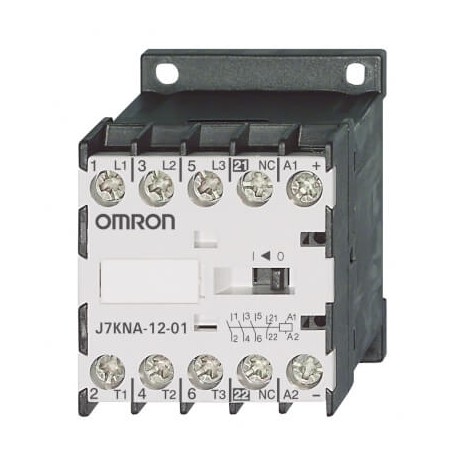

J7KNA-12-01 230 J7KA9062F J7KNA1201230 OMRON 5.5 KW / 12A / AC3 1NC
J7KNA-12-01 230
J7KA9062F
J7KNA1201230
OMRON
10 Pcs.
5.5 KW / 12A / AC3 1NC
Contactor, 3-pole, 12 A/5.5 kW AC3 (20 A AC1) + 1B auxiliary, 230 VAC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage230 VOperation voltageACRated power AC2, AC3 at 400 V [kW]5.5 kWRated current AC3 at 400 V [A]12 ARated current AC1 at 690 V [A]20 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 12 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 12 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 5.5 kW |
| Rated control supply voltage AC 60 Hz (EF003979) | 230 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 220 V |
