View larger
Images are for illustrative purposes only. Please refer to data sheet for details

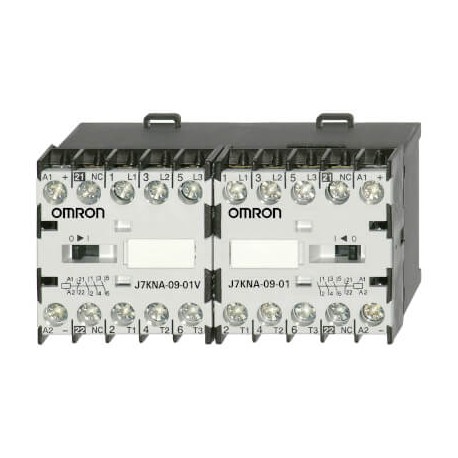

J7KNA-09-01R 24D J7KA9188F J7KNA0901R24D OMRON 4KW / 9A / AC3 1NC
J7KNA-09-01R 24D
J7KA9188F
J7KNA0901R24D
OMRON
1 Pcs.
4KW / 9A / AC3 1NC
Reversing interlocked pair, 9 A/4 kW + 1B auxiliary on both sides, 230 VAC
Automation > Combination of contactors
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC2 x 1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]4 kWRated current AC3 at 400 V [A]9 ARated current AC1 at 690 V [A]20 AFeaturesReversingTerminal typeScrewProduct Width (unpacked)90 mmProduct Height (unpacked)50 mmProduct Depth (unpacked)49 mm
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Function (EF000030) | Reversing safety |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Rated control supply voltage DC (EF003980) | 24 V |
