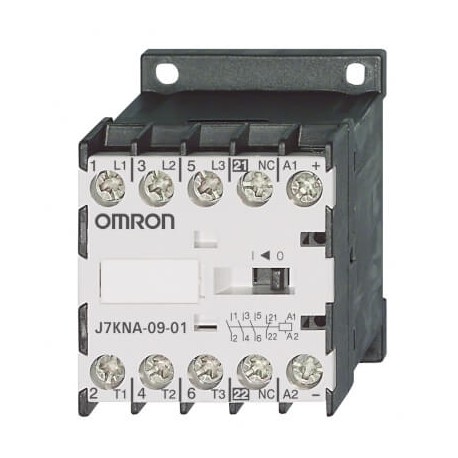

OMRON J7KNA-09-01 24VS J7KNA-09-01 24VS J7KA9032D J7KNA090124VS OMRON 4KW / 9A / AC3 1NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-09-01 24VS J7KA9032D J7KNA090124VS OMRON 4KW / 9A / AC3 1NC

J7KNA-09-01 24VS

J7KA9032D

J7KNA090124VS

OMRON

10 Pcs.

4KW / 9A / AC3 1NC Contactor, 3-pole, 9 A/4 kW AC3 (20 A AC1) + 1B auxiliary with diode suppressor, 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a J7KNA-09-01 24VS OMRON power contactor, this compact switching component is widely utilized in control panels for managing small-to-medium industrial motors and auxiliary circuits. Such devices ensure reliable remote switching and operational safety in automated manufacturing systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]4 kWRated current AC3 at 400 V [A]9 ARated current AC1 at 690 V [A]20 ARated current AC1 at 440 V [A]9 AFeaturesCoil with diodeTerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
