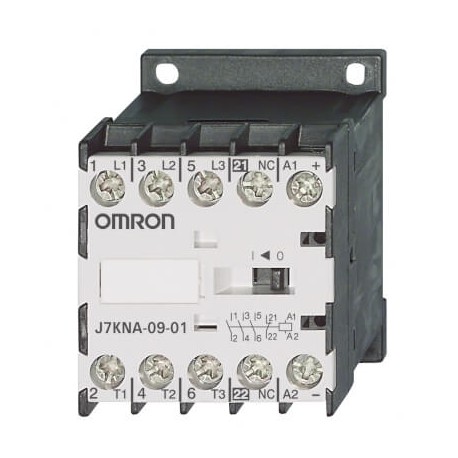

OMRON J7KNA-09-01 24D J7KNA-09-01 24D J7KA9028F J7KNA090124D OMRON 4KW / 9A / AC3 1NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-09-01 24D J7KA9028F J7KNA090124D OMRON 4KW / 9A / AC3 1NC

J7KNA-09-01 24D

J7KA9028F

J7KNA090124D

OMRON

10 Pcs.

4KW / 9A / AC3 1NC Contactor, 3-pole, 9 A/4 kW AC3 (20 A AC1) + 1B auxiliary, 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KNA-09-01 24D is a miniature industrial contactor built for space-constrained control panels requiring precise motor and load switching. Compact contactors are widely used in commercial and light industrial automation to govern smaller electric motors, actuators, and heating loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]4 kWRated current AC3 at 400 V [A]9 ARated current AC1 at 690 V [A]20 ARated current AC1 at 440 V [A]9 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mmPoles3
