View larger
Images are for illustrative purposes only. Please refer to data sheet for details

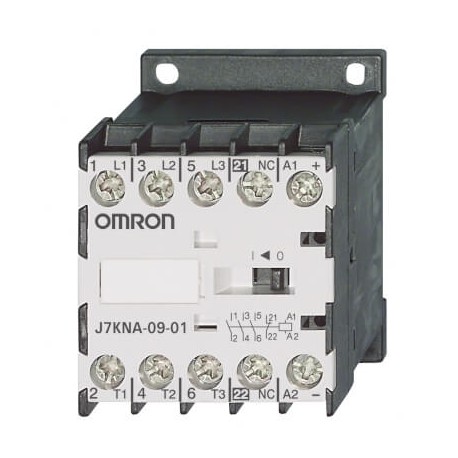

J7KNA-09-01 24 J7KA9010C J7KNA090124 OMRON 4KW / 9A / AC3 1NC
J7KNA-09-01 24
J7KA9010C
J7KNA090124
OMRON
10 Pcs.
4KW / 9A / AC3 1NC
Contactor, 3-pole, 9 A/4 kW AC3 (20 A AC1) + 1B auxiliary, 24 VAC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageACRated power AC2, AC3 at 400 V [kW]4 kWRated current AC3 at 400 V [A]9 ARated current AC1 at 690 V [A]20 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 4 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 9 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 4 kW |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 22 V |
