> OMRON > Low Voltage Switchgear > J7KN Contactors > J7KA9108H

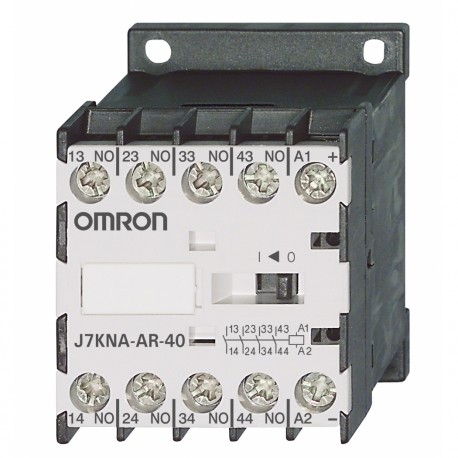

OMRON J7KNA-AR-40 230 J7KNA-AR-40 230 J7KA9108H J7KNAAR40230 OMRON Mini 10A / AC1 4NA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-AR-40 230 J7KA9108H J7KNAAR40230 OMRON Mini 10A / AC1 4NA

J7KNA-AR-40 230

J7KA9108H

J7KNAAR40230

OMRON

10 Pcs.

Mini 10A / AC1 4NA Contactor relay, 4-pole, 4M, 10 A thermal current/3 A AC-15, 230 VAC

Automation > Contactor relay
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Mirror contacts
  • Screw fixing and snap fitting (35mm DIN-rail)
  • Rated current = 10A (I-th)
  • Suitable for electronic devices (DIN 19240)
  • Finger proof (BGV A2)

Specifications & ordering info

Ordering information

Operation

Contacts

Distinctive number according to
DIN EN 50011

Ratings

Thermal rated current

Order code

Coil voltage1,
replace ___ with:

AC15
230 V
A


400 V
A

NO

NC

Ith, A

4-pole, with screw terminals

VAC

VDC

AC

4

0

40 E

3

2

10

J7KNA-AR-40___

24

110

230

-

-

3

1

31 E

3

2

10

J7KNA-AR-31 ___

24

110

230

-

-

2

2

22 E

3

2

10

J7KNA-AR-22 ___

24

110

230

-

-

DC solenoid

4

0

40 E

3

2

10

J7KNA-AR-40 ___

-

-

-

24D

110D

3

1

31 E

3

2

10

J7KNA-AR-31 ___

-

-

-

24D

110D

2

2

22 E

3

2

10

J7KNA-AR-22 ___

-

-

-

24D

110D

DC solenoid with diode

4

0

40 E

3

2

10

J7KNA-AR-40 ____

-

-

-

24VS

-

3

1

31 E

3

2

10

J7KNA-AR-31 ____

-

-

-

24VS

-

2

2

22 E

3

2

10

J7KNA-AR-22 ____

-

-

-

24VS

-

Accessories

Contacts

Ratings

Thermal rated current

Order code

AC15

230 V

A


400 V

A

NO

NC

Ith, A

1

1

3

2

10

J73KN-A-11

0

2

3

2

10

J73KN-A-02

4

0

3

2

10

J73KN-A-40

2

2

3

2

10

J73KN-A-22

0

4

3

2

10

J73KN-A-04

Specifications

Suffix to contactor type
e.g. J7KNA-09-10-24

Voltage marking at the coil for

Rated control voltage Us range for

50 Hz

60 Hz

50 Hz

60 Hz

V

V

min. V

max. V

min. V

max. V

24

24

24

22

24

24

24

110

110 to 115

120 to 125

110

115

120

125

230

220 to 230

240

220

230

240

250

1.Other coil voltages available on request


ETIM for 158036 Low-voltage industrial controls and switchgear (EC000196)
Feature Name Feature Value
Mounting method (EF000003) DIN rail
Connection type auxiliary circuit (EF006820) Screw connection
Voltage type for actuating (EF008242) AC
Suitable for manual operation (EF002978) No
With LED indication (EF005950) No
Interface (EF000594) No
Number of auxiliary contacts as change-over contact (EF003531) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact, leading (EF007282) 0
Rated operation current Ie, 400 V (EF001378) 2 A
Number of auxiliary contacts as normally open contact (EF001376) 4
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) 0
Rated control supply voltage AC 60 Hz (EF003979) 240 V
Rated control supply voltage AC 50 Hz (EF003978) 220 V
