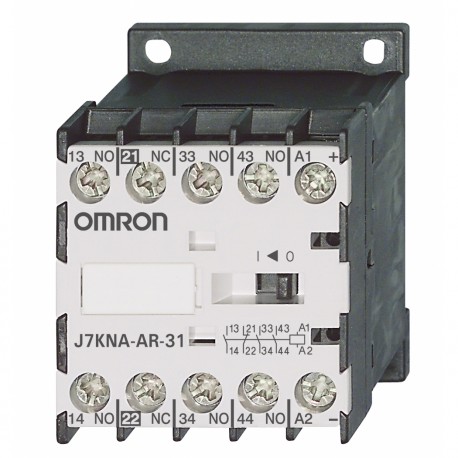

OMRON J7KNA-AR-31 24VS J7KNA-AR-31 24VS J7KA9125H J7KNAAR3124VS OMRON Mini 10A /AC1 3NA+1NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-AR-31 24VS J7KA9125H J7KNAAR3124VS OMRON Mini 10A /AC1 3NA+1NC

J7KNA-AR-31 24VS

J7KA9125H

J7KNAAR3124VS

OMRON

10 Pcs.

Mini 10A /AC1 3NA+1NC Contactor relay, 4-pole, 3M1B, 10 A thermal current/3 A AC-15 with diode suppressor, 24 VDC

Automation > Contactor relay
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Mirror contacts
  • Screw fixing and snap fitting (35mm DIN-rail)
  • Rated current = 10A (I-th)
  • Suitable for electronic devices (DIN 19240)
  • Finger proof (BGV A2)

Specifications & ordering info

Ordering information

Operation

Contacts

Distinctive number according to
DIN EN 50011

Ratings

Thermal rated current

Order code

Coil voltage1,
replace ___ with:

AC15
230 V
A


400 V
A

NO

NC

Ith, A

4-pole, with screw terminals

VAC

VDC

AC

4

0

40 E

3

2

10

J7KNA-AR-40___

24

110

230

-

-

3

1

31 E

3

2

10

J7KNA-AR-31 ___

24

110

230

-

-

2

2

22 E

3

2

10

J7KNA-AR-22 ___

24

110

230

-

-

DC solenoid

4

0

40 E

3

2

10

J7KNA-AR-40 ___

-

-

-

24D

110D

3

1

31 E

3

2

10

J7KNA-AR-31 ___

-

-

-

24D

110D

2

2

22 E

3

2

10

J7KNA-AR-22 ___

-

-

-

24D

110D

DC solenoid with diode

4

0

40 E

3

2

10

J7KNA-AR-40 ____

-

-

-

24VS

-

3

1

31 E

3

2

10

J7KNA-AR-31 ____

-

-

-

24VS

-

2

2

22 E

3

2

10

J7KNA-AR-22 ____

-

-

-

24VS

-

Accessories

Contacts

Ratings

Thermal rated current

Order code

AC15

230 V

A


400 V

A

NO

NC

Ith, A

1

1

3

2

10

J73KN-A-11

0

2

3

2

10

J73KN-A-02

4

0

3

2

10

J73KN-A-40

2

2

3

2

10

J73KN-A-22

0

4

3

2

10

J73KN-A-04

Specifications

Suffix to contactor type
e.g. J7KNA-09-10-24

Voltage marking at the coil for

Rated control voltage Us range for

50 Hz

60 Hz

50 Hz

60 Hz

V

V

min. V

max. V

min. V

max. V

24

24

24

22

24

24

24

110

110 to 115

120 to 125

110

115

120

125

230

220 to 230

240

220

230

240

250

1.Other coil voltages available on request


ETIM for 119025 Low-voltage industrial controls and switchgear (EC000196)
Feature Name Feature Value
Mounting method (EF000003) DIN rail
Connection type auxiliary circuit (EF006820) Screw connection
Voltage type for actuating (EF008242) AC/DC
Suitable for manual operation (EF002978) No
With LED indication (EF005950) No
Interface (EF000594) No
Number of auxiliary contacts as change-over contact (EF003531) 0
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact, leading (EF007282) 0
Rated operation current Ie, 400 V (EF001378) 2 A
Number of auxiliary contacts as normally open contact (EF001376) 3
Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) 0
Rated control supply voltage AC 60 Hz (EF003979) 19.2 V
Rated control supply voltage AC 50 Hz (EF003978) 19.2 V
Rated control supply voltage DC (EF003980) 19.2 V
