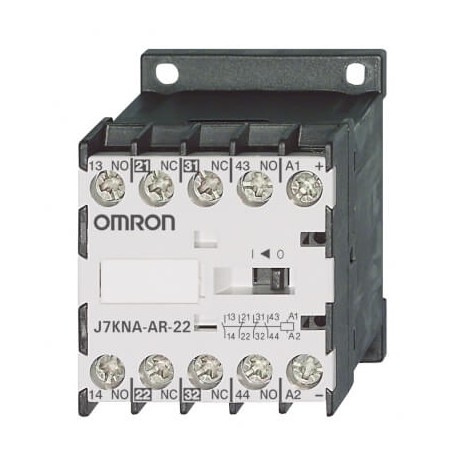

OMRON J7KNA-AR-22 24D J7KNA-AR-22 24D J7KA9113D J7KNAAR2224D OMRON Mini 10A /AC1-2NA+2NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNA-AR-22 24D J7KA9113D J7KNAAR2224D OMRON Mini 10A /AC1-2NA+2NC

J7KNA-AR-22 24D

J7KA9113D

J7KNAAR2224D

OMRON

10 Pcs.

Mini 10A /AC1-2NA+2NC Contator relay, 4-pole, 2M2B, 10A thermal current/3A AC-15, 24 VDC

Automation > Contactor relay
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as an Omron J7KNA-AR-22 24D mini contactor, this component delivers reliable switching performance for auxiliary control circuits in limited-space installations. Miniature contactor relays are widely utilized in industrial machinery to manage low-current automation logic.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Voltage type for actuating (EF008242): DC
  • Suitable for manual operation (EF002978): No
  • With LED indication (EF005950): No
  • Interface (EF000594): No
  • Rated operation current Ie, 400 V (EF001378): 2 A
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO2Auxiliary Contacts NC2Coil voltage24 VOperation voltageDCRated current AC15 at 230V [A]3 ARated current AC15 at 400V [A]2 ARated Current Ith [A]10 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)57.5 mmProduct Depth (unpacked)49 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
