View larger
Images are for illustrative purposes only. Please refer to data sheet for details

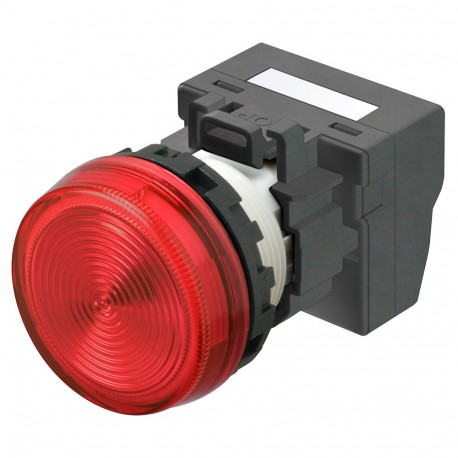

M22N-BN-TRA-RC A2260003C 661890 OMRON Flush M22N indicator, RED, RED LED 24VAC/DC
M22N-BN-TRA-RC
A2260003C
M22NBNTRARC
OMRON
5 Pcs.
Indicator M22N-flush, RED, RED LED 24VAC/DC
Indicator M22N flat, cap color red, LED red, LED voltage 24 VDC
Automation > Indicator light complete
Special
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Application | Indicator |
| Size | 22 mm |
| Shape | Round |
| Profile | Flat |
| Indicator color | Red |
| LED lamp color | Red |
| Rated operating voltage Ue | 21.6-26.4 V |
| Voltage type | AC/DC |
| Terminal | Screw |
| Degree of protection (IP) | IP66 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC/DC |
| Colour front ring (EF002429) | Black |
| Colour lens (EF000207) | Red |
| Degree of protection (NEMA) (EF011959) | 4X |
| Degree of protection (IP) (EF005474) | IP66 |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Type of electric connection (EF003961) | Screw connection |
| Type of lamp socket (EF008229) | LED |
| Type of lens (EF008343) | Flat |
| With front ring (EF006014) | No |
| With light source (EF005905) | Yes |
| Height opening (EF004778) | 22.3 mm |
| Width opening (EF004565) | 22.3 mm |
| Hole diameter (EF000079) | 22.3 mm |
| Number of indicator lights (EF001965) | 1 |
| Rated operating voltage Ue (EF002418) | 21.6 V |
