View larger
Images are for illustrative purposes only. Please refer to data sheet for details

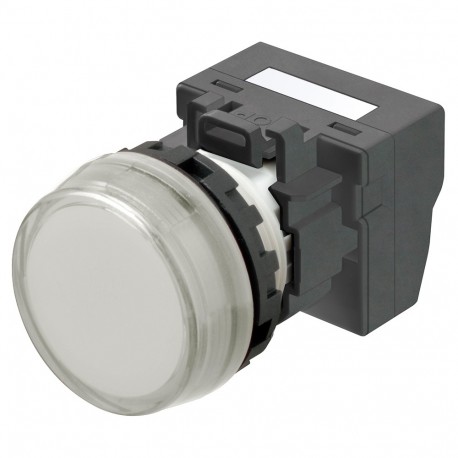

M22N-BC-TWA-WC-P A2265123A 672612 OMRON M22N flush marker indicator, WHITE, WHITE LED 24VAC/DC Push-in+
M22N-BC-TWA-WC-P
A2265123A
M22NBCTWAWCP
OMRON
1 Pcs.
Indicator M22N flush rotulable, WHITE, WHITE LED, 24VAC/DC Push-in+
M22N Indicator, Plastic flat etched, White, White, 24 V, push-in terminal
Automation > Indicator light complete
Special
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Application | Indicator |
| Size | 22 mm |
| Shape | Round |
| Profile | Flat etched |
| Indicator color | Transparent white |
| LED lamp color | White |
| Rated operating voltage Ue | 21.6-26.4 V |
| Voltage type | AC/DC |
| Terminal | Push-in |
| Degree of protection (IP) | IP66 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC/DC |
| Colour front ring (EF002429) | Other |
| Colour lens (EF000207) | White |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Other |
| Type of electric connection (EF003961) | Spring clamp connection |
| Type of lamp socket (EF008229) | LED |
| Type of lens (EF008343) | Flat |
| With front ring (EF006014) | No |
| With light source (EF005905) | Yes |
| Height opening (EF004778) | 22.3 mm |
| Width opening (EF004565) | 22.3 mm |
| Hole diameter (EF000079) | 22.3 mm |
| Number of indicator lights (EF001965) | 1 |
| Rated operating voltage Ue (EF002418) | 21.6 V |
