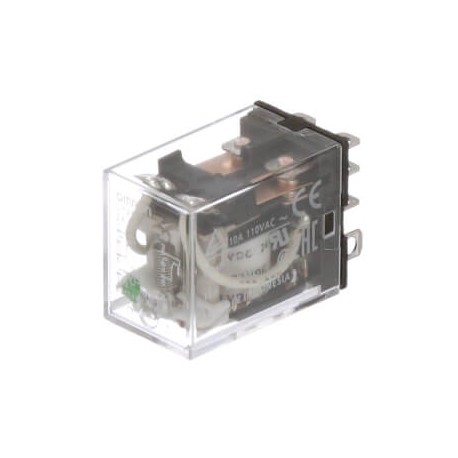

OMRON LY4-D 24VDC LY4-D 24VDC LY4 1719C LY4D24DC OMRON 4PDT 10A, diode, 24 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY4-D 24VDC LY4 1719C LY4D24DC OMRON 4PDT 10A, diode, 24 VDC

LY4-D 24VDC

LY4 1719C

LY4D24DC

OMRON

10 Pcs.

4PDT 10A, diode, 24 VDC Relay, plug-in, 14-pin, 4PDT, 10 A, coil suppression, 24 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron LY4-D 24VDC is an electromechanical relay designed for industrial control panels to isolate control circuits and switch medium loads. General-purpose relays of this type are routinely integrated into automation systems to bridge low-power control signals with higher-capacity actuators, indicators, or motor starters. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 4
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 41.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
  • Nominal current (EF000001): 10 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles4Rated carry current10 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact description4PDTFeaturesDiode, Transparent caseTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
