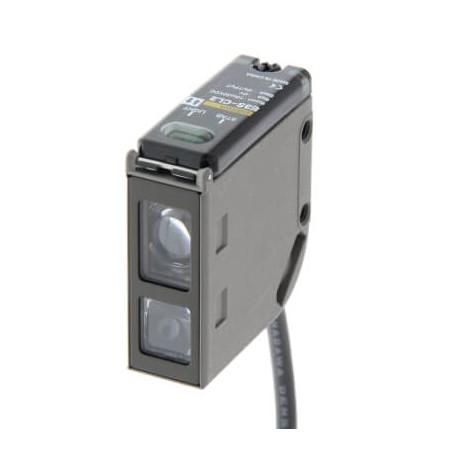

OMRON E3S-CL2 2M E3S-CL2 2M E3S 7031G E3SCL22MOMS OMRON BGS cc 3h 50cm Knob View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-CL2 2M E3S 7031G E3SCL22MOMS OMRON BGS cc 3h 50cm Knob

E3S-CL2 2M

E3S 7031G

E3SCL22MOMS

OMRON

1 Pcs.

BGS cc 3h 50cm Knob Photoelectric sensor distance setting BGS, 5-500mm, NPN/PNP, 2m cable

Automation > Light scanner with background masking
E3S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron photoelectric sensor, specifically part number E3S-CL2 2M, is utilized in industrial automation systems for non-contact object detection, positioning, and sorting tasks along high-speed manufacturing lines. These sensors emit a light beam to detect the presence or absence of items, helping to automate mechanical processes efficiently. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 2
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Change-over contact (NO/NC)
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP/NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance500 mmSensing distance (min.)5 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNP/NPNOperation modeDark-ON, Light-ONResponse time2 msMaterial housingZincThread sizeOtherProduct Width (unpacked)15.4 mmProduct Height (unpacked)43.7 mmProduct Depth (unpacked)40 mmType of lightInfrared lightSpot size60 mmPower supply voltage10-30 VDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
