E2E-X5E1-M1 238427 E2EX5E1M1OMS OMRON Short-3h dc Enr 5 mm M18 NPN NA M12 Connector
E2E-X5E1-M1
238427
E2EX5E1M1OMS
OMRON
1 Pcs.
Automation > Inductive proximity switch
E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron cylindrical inductive proximity sensor engineered for standard metal detection duties across diverse manufacturing machinery. Installers rely on these robust units for repeatable part detection on automated production equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Omron
- Manufacturer part number: E2E-X5E1-M1
- Catalogue code: 238427
- Product description: Cylindrical Proximity Sensor E2E/E2E2 A New Series of Easy-to-use and Tough E2E/E2E2 Models Long-size E2E2 Proximity Sen- sor Conforms to CENELEC • Ideal for a variety of applications. • With a metal connector that can b
- Manufacturer summary: Short-3h dc Enr 5 mm M18 NPN NA M12 Connector Short 3h cc Enr 5mm M18 NPN NA Connector M12
More info

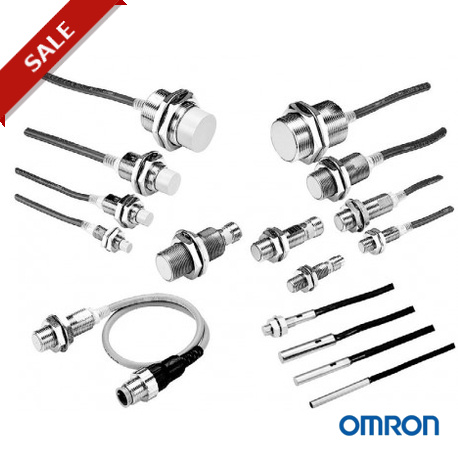

▲Cylindrical Proximity Sensor
E2E/E2E2
A New Series of Easy-to-use and Tough E2E/E2E2 Models
Long-size E2E2 Proximity Sen- sor Conforms to CENELEC
• Ideal for a variety of applications.
• With a metal connector that can be tightened securely and a cable protector.
• With an easy-to-see indicator, deeper mounting holes, and tightening flats for wrenches.
• New 3-dia. size (sensing distance: 0.6 mm) added to the lineup.
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments.
Ordering Information
E2E
DC 2-wire/Pre-wired Models
Self-diagnostic output function
SizeSensing distanceModel
NONC
Yes ShieldedM12 3 mmE2E-X3D1S (See note 1.)--- M18 7 mmE2E-X7D1S (See note 1.)--- M30 10 mmE2E-X10D1S (See note 1.)---
UnshieldedM12 8 mmE2E-X8MD1S (See note 1.) --- M18 14 mmE2E-X14MD1S (See note 1.) --- M30 20 mmE2E-X20MD1S (See note 1.) ---
NoShieldedM8 2 mmE2E-X2D1-N (See notes 2 and 3.)E2E-X2D2-N (See note 3.) M12 3 mmE2E-X3D1-N (See notes 1, 2 and 3.)E2E-X3D2-N (See note 3.) M18 7 mmE2E-X7D1-N (See notes 1, 2 and 3.)E2E-X7D2-N (See note 3.) M30 10 mmE2E-X10D1-N (See notes 1, 2 and 3.)E2E-X10D2-N
UnshieldedM8 4 mmE2E-X4MD1 (See notes 2 and 3.) E2E-X4MD2
M12 8 mmE2E-X8MD1 (See notes 1, 2 and 3.) E2E-X8MD2
M18 14 mmE2E-X14MD1 (See notes 1, 2 and 3.) E2E-X14MD2
M30 20 mmE2E-X20MD1 (See notes 1, 2 and 3.E2E-X20MD2
Note 1. In addition to the above models, E2E-X@@15 models (e.g., E2E-X3D15-N), which are different in frequency from the above models, are available.
2. E2E models with a robotics cable are available as well. The model number of a model with a robotics cable has the suffix “-R” (e.g., E2E-X3D1-R).
3. Cables with a length of 5 m are also available. Specify the cable length at the end of the model number (e.g., E2E-X3D1-N 5M).
E2E/E2E2 Cylindrical Proximity Sensor1
