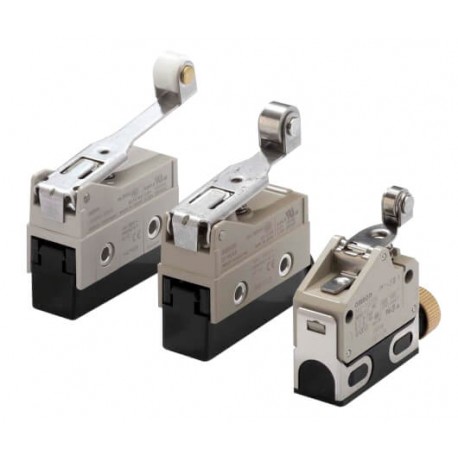

OMRON D4E-2A20N D4E-2A20N D4EN0023B D4E2A20N OMRON Plunger roller plunger SPDT 0.1 A Sealed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-2A20N D4EN0023B D4E2A20N OMRON Plunger roller plunger SPDT 0.1 A Sealed

D4E-2A20N

D4EN0023B

D4E2A20N

OMRON

10 Pcs.

Plunger roller plunger SPDT 0.1 A Sealed SPDT 0.1A Watertle Roller Embolo Limit switch, slim sealed, screw terminal, general purpose, roller plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A sealed limit switch is engineered to operate in harsh industrial environments where dust, moisture, and debris could compromise standard electrical contacts. This Omron D4E-2A20N component delivers reliable position sensing for precision control panels and moving assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.5 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.03 A
  • Number of contacts as normally closed contact (EF008255): 0
  • Ambient temperature during operating (EF007515): -10 °C

More info

▲
  • The WL standard size provides a popular mounting shape and pitch in many countries
  • The D4E and D4MC compact size provide alternative housing sizes and mounting pitches
  • The ZE compact size provides diagonal mounting holes
  • The ZV compact sizes provides base mounting holes
