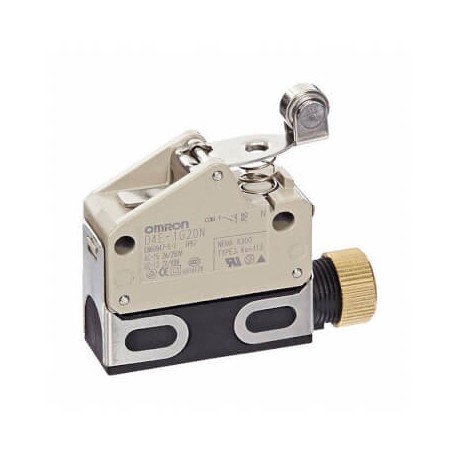

OMRON D4E-1G20N D4E-1G20N D4EN0015A D4E1G20N OMRON Lever roller SPDT 5A Sealed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-1G20N D4EN0015A D4E1G20N OMRON Lever roller SPDT 5A Sealed

D4E-1G20N

D4EN0015A

D4E1G20N

OMRON

10 Pcs.

Lever roller SPDT 5A Sealed Limit switch, slim sealed, screw terminal, general purpose, roller lever

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4E-1G20N lever roller limit switch is a sealed electromechanical sensor deployed to monitor positioning, travel boundaries, and mechanical movement within compact automation machinery. It accurately transforms physical travel into electrical switching commands for control systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Roller lever
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 1.5 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.03 A

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typeRoller leverConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication
