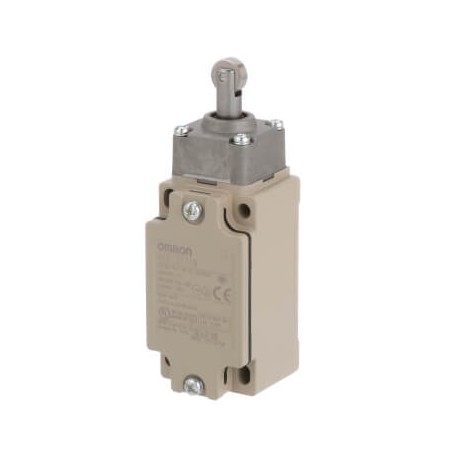

D4B-2171N D4BN9018D D4B2171N OMRON Metal SPDT-no/NC Plunger roller plunger G1/2
D4B-2171N
D4BN9018D
D4B2171N
OMRON
1 Pcs.
Metal SPDT-no/NC Plunger roller plunger G1/2
Limit switch, roller plunger, SPDB NO/NC, snap action, 10 A
Automation > End switch
D4B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Material housingAluminiumActuator typeRoller plungerConnection methodTerminal blockConduit sizeG1/2Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap actionDirect opening mechanism
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | 6P |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Roller cam |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | Yes |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Width sensor (EF007094) | 40 mm |
| Height of sensor (EF007283) | 97 mm |
| Length of sensor (EF007334) | 43 mm |
| Ambient temperature during operating (EF007515) | -40 °C |
