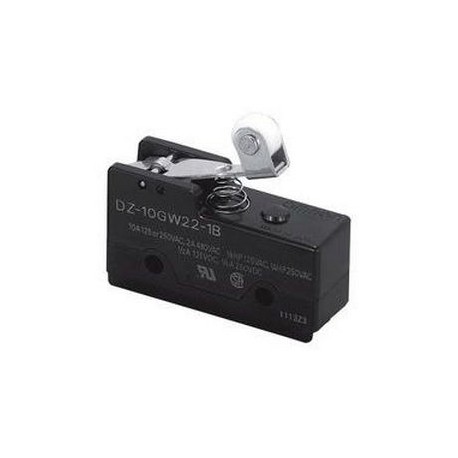

OMRON DZ-10GW22-1B DZ-10GW22-1B DZ 8008B DZ10GW221B OMRON Lever roller short DPDT Solder View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DZ-10GW22-1B DZ 8008B DZ10GW221B OMRON Lever roller short DPDT Solder

DZ-10GW22-1B

DZ 8008B

DZ10GW221B

OMRON

20 Pcs.

Lever roller short DPDT Solder Basic switch, short hinge roller lever, 10 A, DPDT, screw terminals

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

DZ-10GW22-1B DZ 8008B DZ10GW221B OMRON Lever roller short DPDT Solder serves as a reliable basic snap-action switch integrated into control panels and mechanical actuators for precise electrical signal switching based on physical displacement. Precise pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of control element (EF006976): Roller lever
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.25 A
  • Number of contacts as normally closed contact (EF008255): 0
