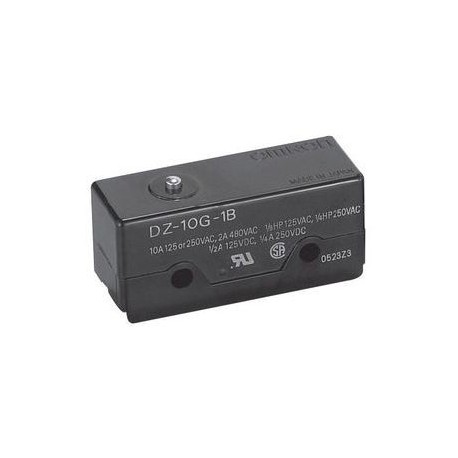

OMRON DZ-10G-1B DZ-10G-1B DZ 1003C DZ10G1B OMRON Plunger DPDT Screw View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DZ-10G-1B DZ 1003C DZ10G1B OMRON Plunger DPDT Screw

DZ-10G-1B

DZ 1003C

DZ10G1B

OMRON

20 Pcs.

Plunger DPDT Screw DPDT Screw plunger Basic switch, pin plunger, 10 A, DPDT, screw terminals

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron plunger dpdt screw (DZ-10G-1B) is a general-purpose basic limit switch deployed in control panels and manufacturing machinery to manage dual-circuit electrical signals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of control element (EF006976): Plunger
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.25 A
  • Number of contacts as normally closed contact (EF008255): 0
