View larger
Images are for illustrative purposes only. Please refer to data sheet for details

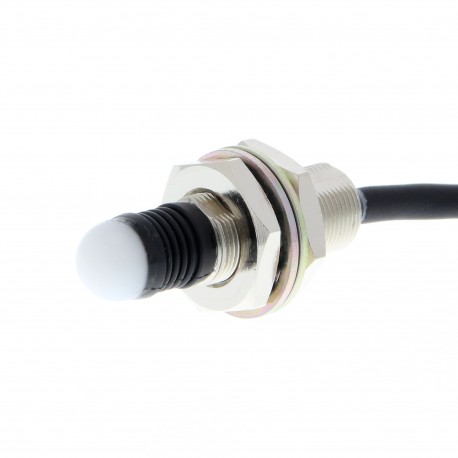

D5B-8015 D5B 8015M D5B8015 OMRON FC High sensitivity M10
D5B-8015
D5B 8015M
D5B8015
OMRON
1 Pcs.
FC High sensitivity M10
Tactile Limit switch, M8 body, hemispheric actuator, 5 m prewired
Automation > End switch
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- High-sensitivity mechanical touch switch
- Detects objects in multiple directions and operates with slight force
- Movement differential of 0.01mm assures high accuracy of detection
- Gold-plated contacts capable of switching micro current/voltage load
- Highly resistant to dust, fine particles, water or oil splashes (IP67)
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Plunger |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | With cable preassembled |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Slow-action switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.03 A |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Diameter sensor (EF007111) | 8 mm |
| Length of sensor (EF007334) | 28 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
