View larger
Images are for illustrative purposes only. Please refer to data sheet for details

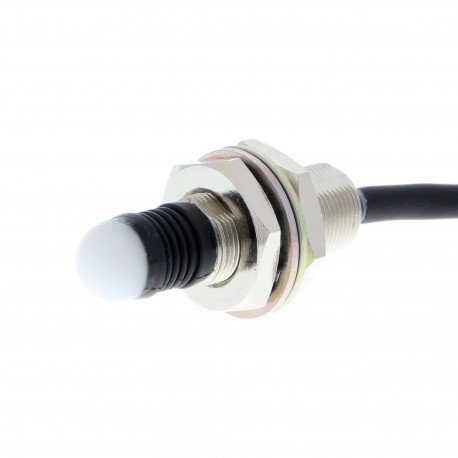

D5B-8013 D5B 8013C D5B8013 OMRON High sensitivity Stroke hemispheric M8 Cable 3m
D5B-8013
D5B 8013C
D5B8013
OMRON
1 Pcs.
High sensitivity Stroke hemispheric M8 Cable 3m
Tactile Limit switch, M8 body, hemispheric actuator, 3 m prewired
Automation > End switch
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Material housing | Metal |
| Degree of protection (IP) | IP67 |
| Actuator type | Plunger |
| Actuator detail | Hemispheric |
| Connection method | Cable |
| Cable length | 3 m |
| Cable entry direction | Bottom |
| Number of contacts, normally-open | 0 |
| Number of contacts, normally-closed | 1 |
| Number of contacts, change-over | 0 |
| Make before break | |
| Switch action | Slow action |
| Load type | Micro load |
| With status indication |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Plunger |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | With cable preassembled |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Slow-action switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.03 A |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Diameter sensor (EF007111) | 8 mm |
| Length of sensor (EF007334) | 28 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
