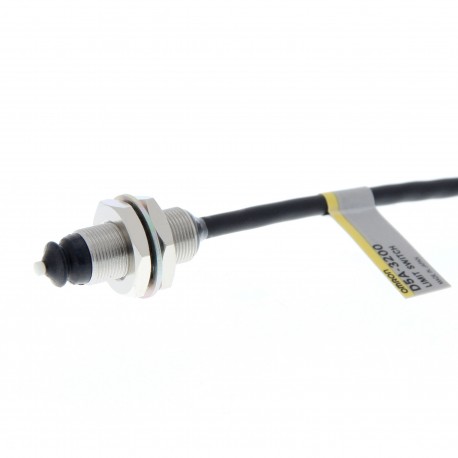

OMRON D5A-3200 D5A-3200 D5A 3200C D5A3200 OMRON FC High precision 1 micron Plunger needle M8 NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D5A-3200 D5A 3200C D5A3200 OMRON FC High precision 1 micron Plunger needle M8 NC

D5A-3200

D5A 3200C

D5A3200

OMRON

1 Pcs.

FC High precision 1 micron Plunger needle M8 NC Limit switch, high precision, pin plunger, M8, 0.49 N Operating force, SPST-NC, prewired 1 m

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering high-precision feedback, the D5A-3200 Omron limit switch is built to detect minute physical movements in demanding positioning applications. Precision switches of this type are commonly applied in measurement equipment, assembly jigs, and quality control machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 1
  • Diameter sensor (EF007111): 8 mm
  • Length of sensor (EF007334): 23 mm
  • Ambient temperature during operating (EF007515): -20 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
