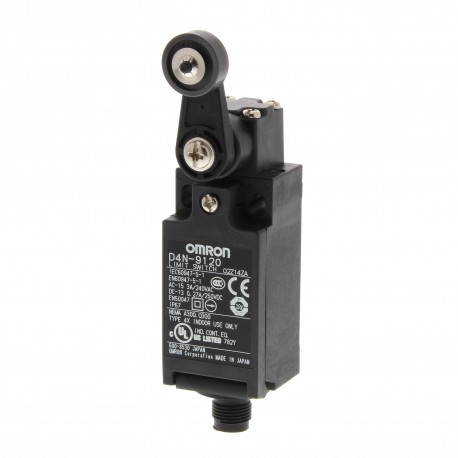

OMRON D4N-9120 D4N-9120 D4N 0020E D4N9120 OMRON Plastic 1NC/1NO Sharp Roller plunger plug Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-9120 D4N 0020E D4N9120 OMRON Plastic 1NC/1NO Sharp Roller plunger plug Connector M12

D4N-9120

D4N 0020E

D4N9120

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller plunger plug Connector M12 Limit switch, D4N, M12 connector (1-conduit), 1NC/1NO (snap-action), roller lever (resin lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4N-9120 is a plastic safety position switch equipped with an M12 plug connector and a sharp roller plunger. Safety switches are implemented in automation systems to monitor protective doors and movable guards, helping to maintain strict operational safety standards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Connector M12
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailResin lever, Resin rollerConnection methodConnector M12Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
