View larger
Images are for illustrative purposes only. Please refer to data sheet for details

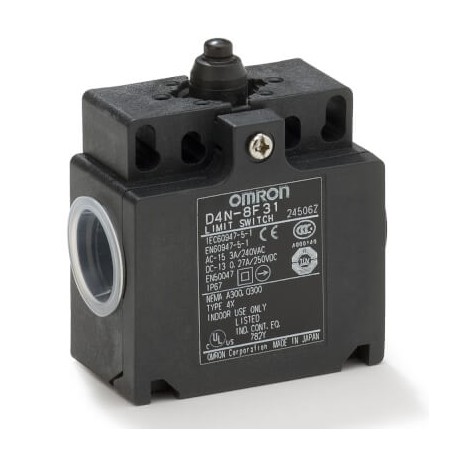

D4N-8F31 D4N 0478B D4N8F31 OMRON Plastic 2NC/1NO Slow Plunger flat 2-M20
D4N-8F31
D4N 0478B
D4N8F31
OMRON
1 Pcs.
Plastic 2NC/1NO Slow Plunger flat 2-M20
Limit switch, Top plunger, 2NC/1NO (MBB contact-/-slow-action), 2NC/1NO (MBB contact-/-slow-action), M20 (2-conduit)
Automation > End switch
D4N
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Material housingPlasticActuator typePlungerConnection methodTerminal blockConduit sizeM20Cable entry directionLeft or RightNumber of contacts, normally-open1Number of contacts, normally-closed2Make before breakSwitch actionSlow action
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Plunger |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Slow-action switch with overlapping |
| Housing material (EF001596) | Plastic |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | Yes |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.55 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.27 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 6 A |
| Width sensor (EF007094) | 56 mm |
| Height of sensor (EF007283) | 65 mm |
| Length of sensor (EF007334) | 30 mm |
| Ambient temperature during operating (EF007515) | -30 °C |
