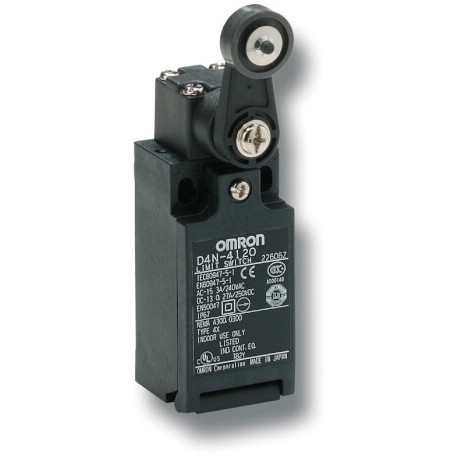

OMRON D4N-8120 D4N-8120 D4N 0023M D4N8120 OMRON Plastic 1NC/1NO Sharp Roller 2-M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-8120 D4N 0023M D4N8120 OMRON Plastic 1NC/1NO Sharp Roller 2-M20

D4N-8120

D4N 0023M

D4N8120

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller 2-M20 Limit switch, D4N, M20 (2-conduit), 1NC/1NO (snap-action), Roller lever (resin lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4N-8120 limit switch is engineered to provide reliable mechanical position detection in safety and automation circuits by translating physical motion into electrical signals. These switches are commonly mounted on protective guards and moving slides to maintain operational safety protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailResin lever, Resin rollerConnection methodTerminal blockConduit sizeM20Cable entry directionLeft or RightNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action
