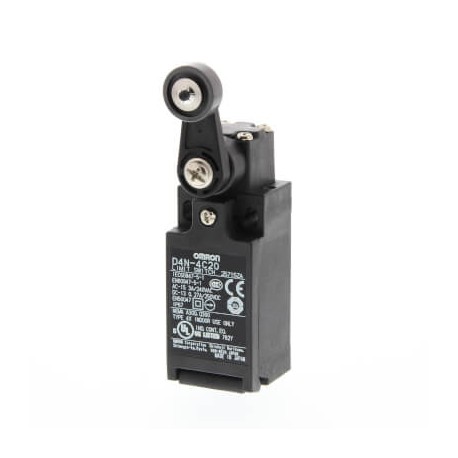

OMRON D4N-4F20 D4N-4F20 D4N 0457M D4N4F20 OMRON Plastic 2NC/1NO Slow Roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4F20 D4N 0457M D4N4F20 OMRON Plastic 2NC/1NO Slow Roller plunger M20

D4N-4F20

D4N 0457M

D4N4F20

OMRON

1 Pcs.

Plastic 2NC/1NO Slow Roller plunger M20 Plastic 2NC/1NA Slow Roller M20 Safety Limit switch, D4N, M20 (1 conduit), 2NC/1NO (MBB contact/slow-action), roller lever (resin lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4N-4F20 is a plastic housed position switch outfitted with a slow-action roller lever and dual metric cable entry points for rugged industrial feedback applications. Such electromechanical switches are universally relied upon to detect object presence and safeguard operational limits on automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material housing: Plastic
  • Actuator type: Roller lever
  • Actuator detail: Resin lever, Resin roller
  • Connection method: Terminal block
  • Conduit size: M20
  • Cable entry direction: Bottom
  • Number of contacts, normally-open: 1
  • Number of contacts, normally-closed: 2
  • Switch action: Slow action
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch with overlapping
  • Housing material (EF001596): Plastic

More info

▲

Specifications

Material housingPlastic
Actuator typeRoller lever
Actuator detailResin lever, Resin roller
Connection methodTerminal block
Conduit sizeM20
Cable entry directionBottom
Number of contacts, normally-open1
Number of contacts, normally-closed2
Make before break
Switch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
