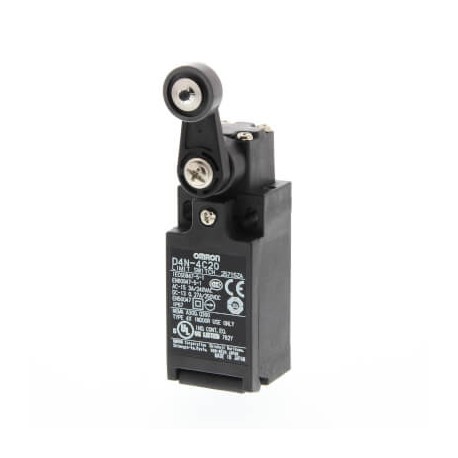

OMRON D4N-4C20 D4N-4C20 D4N 0274G D4N4C20 OMRON Plastic 2NC/1NO Slow Roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4C20 D4N 0274G D4N4C20 OMRON Plastic 2NC/1NO Slow Roller plunger M20

D4N-4C20

D4N 0274G

D4N4C20

OMRON

1 Pcs.

Plastic 2NC/1NO Slow Roller plunger M20 Limit switch, D4N, M20 (1-conduit), 2NC/1NO (slow-action), roller lever (resin lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for precise position detection, a limit switch translates physical movement into switching operations to control and monitor industrial machinery. Commonly employed in automated assembly lines, robotics, and safety circuits, these parts ensure accurate tracking of moving parts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing: Cuboid
  • Degree of protection (IP): IP67
  • Alignment of the control element: Roller cam straight
  • Type of control element: Roller lever
  • Type of electric connection: Cable entry metrical
  • Switching function: Slow-action switch
  • Housing material: Plastic
  • Switching function latching: No
  • With status indication: No
  • Suitable for safety functions: Yes
  • Forced opening: Yes
  • Output electronic: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Rated operation current Ie at DC-13, 125 V: 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailResin lever, Resin rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed2Make before breakSwitch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
