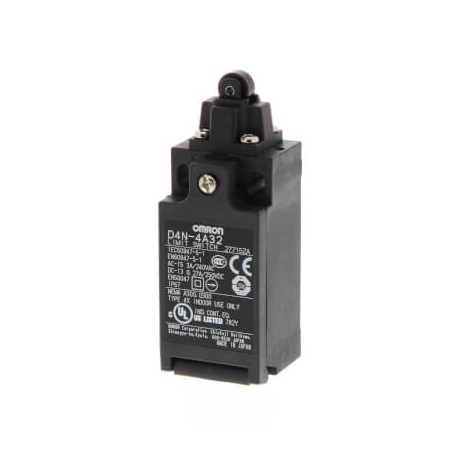

OMRON D4N-4A32 D4N-4A32 D4N 0013B D4N4A32 OMRON Plastic 1NC/1NO Slow Plunger roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4A32 D4N 0013B D4N4A32 OMRON Plastic 1NC/1NO Slow Plunger roller plunger M20

D4N-4A32

D4N 0013B

D4N4A32

OMRON

1 Pcs.

Plastic 1NC/1NO Slow Plunger roller plunger M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (slow-action), top roller plunger

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4N-4A32 limit switch provides dependable mechanical feedback within automated control loops, ensuring precise tracking of moving machine components. These robust safety switches are frequently deployed on machine guards and automated assembly barriers to prevent unauthorized access during operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller plungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSlow action
