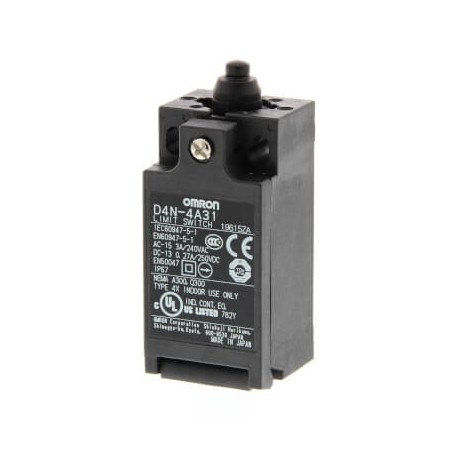

OMRON D4N-4A31 D4N-4A31 D4N 0163E D4N4A31 OMRON Plastic 2NC Slow Plunger flat M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4A31 D4N 0163E D4N4A31 OMRON Plastic 2NC Slow Plunger flat M20

D4N-4A31

D4N 0163E

D4N4A31

OMRON

1 Pcs.

Plastic 2NC Slow Plunger flat M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (slow-action), top plunger

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D4N-4A31 D4N 0163E D4N4A31 OMRON Plastic 2NC Slow Plunger flat M20 is a specialized position switch designed to detect physical movement limits in automated industrial machinery. These components provide crucial control feedback for interlocking doors, moving carriages, and positioning systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingPlasticActuator typePlungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
