OMRON D4N-4A2H D4N-4A2H D4N 0200C D4N4A2H OMRON Plastic 1NC/1NO Slow-Roller adj. D50mm M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4A2H D4N 0200C D4N4A2H OMRON Plastic 1NC/1NO Slow-Roller adj. D50mm M20

D4N-4A2H

D4N 0200C

D4N4A2H

OMRON

1 Pcs.

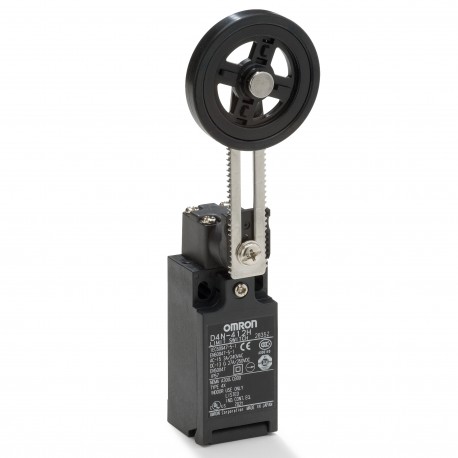

Plastic 1NC/1NO Slow-Roller adj. D50mm M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (slow-action), adjustable roller lever (metal lever, rubber roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D4N-4A2H Omron plastic 1NC/1NO slow-roller adj. D50mm M20 operates as an electromechanical limit switch used to detect the presence, position, or end-of-travel of moving machine parts in industrial automation setups. Mechanical switches like this provide reliable feedback to safety and control circuits to govern automated sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Adjustable roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
  • Direct opening mechanism and approval by notified body
  • Rugged plastic housing with double insulation
  • Wide range of actuators
  • M12 connectors or terminal block with M20 conduit

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
