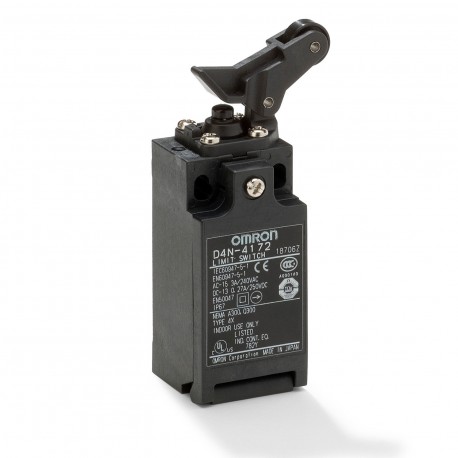

OMRON D4N-4172 D4N-4172 D4N 0058B D4N4172 OMRON Plastic 1NC/1NO Sharp Articulated Vertical M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4172 D4N 0058B D4N4172 OMRON Plastic 1NC/1NO Sharp Articulated Vertical M20

D4N-4172

D4N 0058B

D4N4172

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Articulated Vertical M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (snap-action), one-way roller arm lever (vertical)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4N-4172 is a plastic roller cam vertical position switch designed to monitor mechanical movement, detect limits, and provide safety interlock signaling in industrial machinery.

Limit switches are widely utilized across automated production lines, material handling systems, and robotic cells to track the precise positioning of moving parts and halt operations before unsafe boundaries are reached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller cam
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeOne-way roller arm leverActuator detailVerticalConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action
