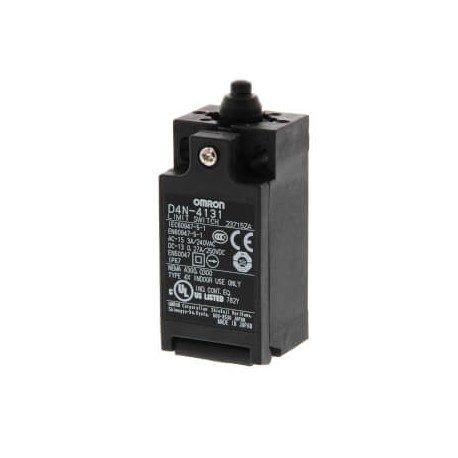

OMRON D4N-4131 D4N-4131 D4N 0004C D4N4131 OMRON Plastic 1NC/1NO Sharp Plunger flat M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4131 D4N 0004C D4N4131 OMRON Plastic 1NC/1NO Sharp Plunger flat M20

D4N-4131

D4N 0004C

D4N4131

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Plunger flat M20 Limit switch, D4N, M20 (1-conduit), 1NC/1NO (snap-action), top plunger

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for reliable position detection, the D4N-4131 Omron plastic limit switch provides precise feedback in automated machinery and control panels. Limit switches are widely implemented across manufacturing plants to govern travel limits, sequence operations, and ensure safe mechanical boundaries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingPlasticActuator typePlungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action
