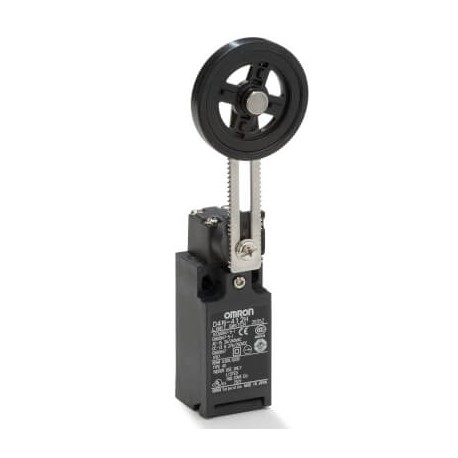

OMRON D4N-412H D4N-412H D4N 0071M D4N412H OMRON Plastic 1NC/1NO Sharp Roller adj. D50mm M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-412H D4N 0071M D4N412H OMRON Plastic 1NC/1NO Sharp Roller adj. D50mm M20

D4N-412H

D4N 0071M

D4N412H

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller adj. D50mm M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (snap-action), adjustable roller lever (metal lever, rubber roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A snap-action safety switch utilizing an adjustable roller lever actuator to monitor physical positions in industrial automation circuits. Facilities rely on position switches of this style to verify guard closures and control machine movement limits effectively. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Adjustable roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeAdjustable roller leverActuator detailForm lock, Metal lever, Rubber rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
