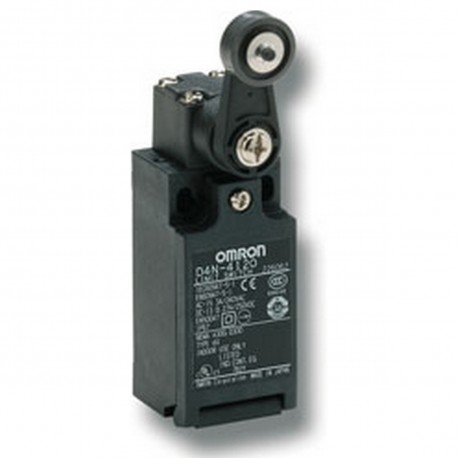

OMRON D4N-4120 D4N-4120 D4N 0002G D4N4120 OMRON Plastic 1NC/1NO Sharp Roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4120 D4N 0002G D4N4120 OMRON Plastic 1NC/1NO Sharp Roller plunger M20

D4N-4120

D4N 0002G

D4N4120

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller plunger M20 Limit switch, D4N, M20 (1-conduit), 1NC/1NO (snap-action), roller lever (resin lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4N-4120 position switch serves as a reliable feedback device in industrial control panels and automated assembly lines to detect object presence and travel boundaries. Placed along mechanical pathways, it converts physical actuation into precise electrical switching signals for process logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailResin lever, Resin rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
