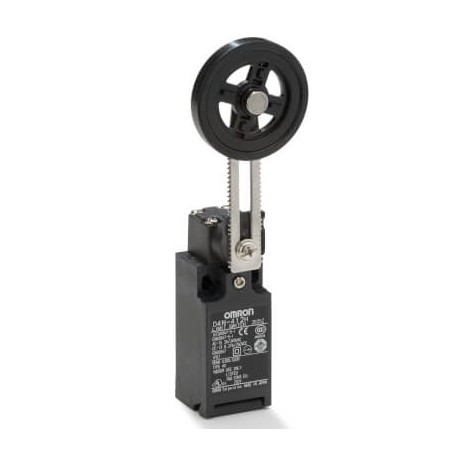

OMRON D4N-1A2H D4N-1A2H D4N 0197M D4N1A2H OMRON Plastic 1NC/1NO Slow-Roller adj. D50mm PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-1A2H D4N 0197M D4N1A2H OMRON Plastic 1NC/1NO Slow-Roller adj. D50mm PG13,5

D4N-1A2H

D4N 0197M

D4N1A2H

OMRON

1 Pcs.

Plastic 1NC/1NO Slow-Roller adj. D50mm PG13,5 Limit switch, Adjustable roller lever, form lock (metal lever, rubber roller), 1NC/1NO (slow-action), 1NC/1NO (slow-action), Pg13.5 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material housingPlasticActuator typeAdjustable roller leverActuator detailForm lock, Metal lever, Rubber rollerConnection methodTerminal blockConduit sizePG13.5Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSlow action
ETIM for 170274 Sensors (EC000030)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP67
Alignment of the control element (EF008793) Roller cam straight
Type of control element (EF006976) Adjustable roller lever
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Cable entry PG
Type of interface (EF006977) None
Switching function (EF000189) Slow-action switch
Housing material (EF001596) Plastic
Explosion safety category for gas (EF003997) None
Switching function latching (EF007447) No
With status indication (EF001602) No
Suitable for safety functions (EF001597) Yes
Forced opening (EF006694) Yes
Output electronic (EF006987) No
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Rated operation current Ie at AC-15, 230 V (EF001385) 3 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.55 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 230 V (EF001386) 0.27 A
Number of contacts as normally closed contact (EF008255) 1
Rated operation current Ie at AC-15, 125 V (EF007082) 6 A
Width sensor (EF007094) 31 mm
Height of sensor (EF007283) 130 mm
Length of sensor (EF007334) 30 mm
Ambient temperature during operating (EF007515) -30 °C
