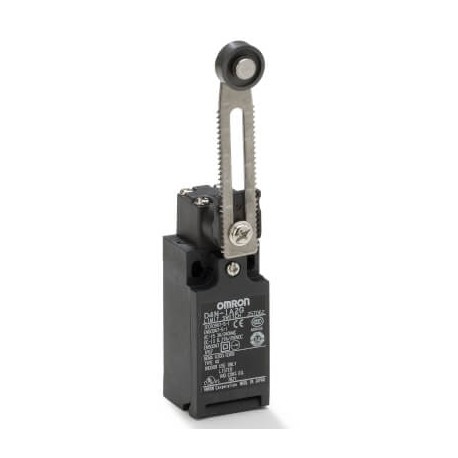

OMRON D4N-1A2G D4N-1A2G D4N 0190B D4N1A2G OMRON Plastic 1NC/1NO Slow-Roller adj. PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-1A2G D4N 0190B D4N1A2G OMRON Plastic 1NC/1NO Slow-Roller adj. PG13,5

D4N-1A2G

D4N 0190B

D4N1A2G

OMRON

1 Pcs.

Plastic 1NC/1NO Slow-Roller adj. PG13,5 Limit switch, D4N, Pg13.5 (1-conduit), 1NC/1NO (slow-action), Adjustable roller lever, form lock (metal lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D4N-1A2G D4N 0190B D4N1A2G OMRON Plastic 1NC/1NO Slow-Roller adj. PG13,5 is a dependable limit switch deployed across factory automation systems to track positional limits, control movement boundaries, and execute safety monitoring tasks. These units transform physical displacement into electrical signals for automated machinery, material handling lines, and robotic installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Adjustable roller lever
  • Type of electric connection (EF003961): Cable entry PG
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeAdjustable roller leverActuator detailForm lock, Metal lever, Resin rollerConnection methodTerminal blockConduit sizePG13.5Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
