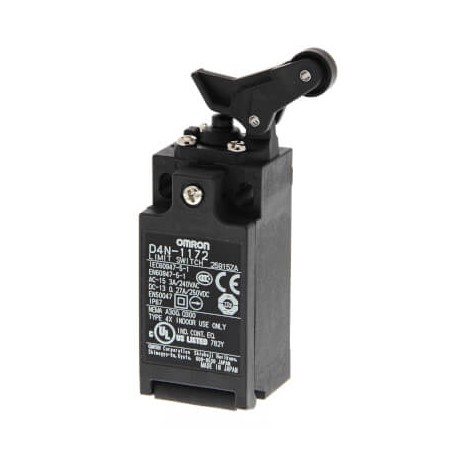

OMRON D4N-1172 D4N-1172 D4N 0055H D4N1172 OMRON Plastic 1NC/1NO Sharp Articulated vertical PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-1172 D4N 0055H D4N1172 OMRON Plastic 1NC/1NO Sharp Articulated vertical PG13,5

D4N-1172

D4N 0055H

D4N1172

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Articulated vertical PG13,5 Limit switch, One-way roller arm lever (vertical), 1NC/1NO (snap-action), 1NC/1NO (snap-action), Pg13.5 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A D4N-1172 Omron limit switch monitors physical trajectory and operational boundaries in automated production lines, sending direct electrical signals to control systems. Such switches protect equipment by preventing over-travel and verifying component placement.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller cam
  • Type of electric connection (EF003961): Cable entry PG
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeOne-way roller arm leverActuator detailVerticalConnection methodTerminal blockConduit sizePG13.5Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
