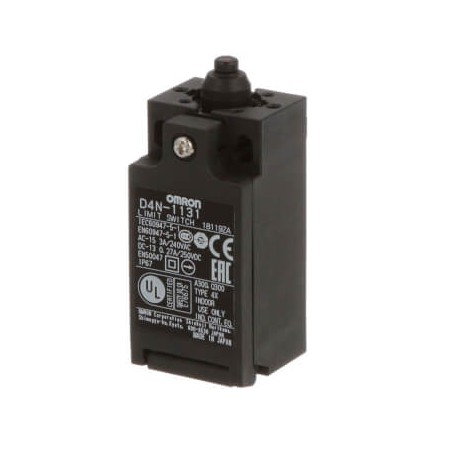

OMRON D4N-1131 D4N-1131 D4N 0037M D4N1131 OMRON Plastic 1NC/1NO Sharp Plunger flat PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-1131 D4N 0037M D4N1131 OMRON Plastic 1NC/1NO Sharp Plunger flat PG13,5

D4N-1131

D4N 0037M

D4N1131

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Plunger flat PG13,5 Limit switch, Top plunger, 1NC/1NO (snap-action), 1NC/1NO (snap-action), Pg13.5 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4N-1131 D4N 0037M D4N1131 OMRON Plastic 1NC/1NO Sharp Plunger flat PG13,5 functions as a dependable position switch used across factory automation networks to monitor linear motion and physical boundaries. Industrial limit switches are standard devices used to halt motors, reverse actuators, or signal controller units upon reaching structural limits. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry PG
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingPlasticActuator typePlungerConnection methodTerminal blockConduit sizePG13.5Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
