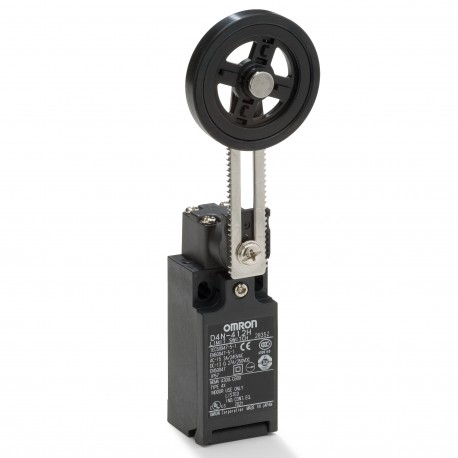

OMRON D4N-112H D4N-112H D4N 0069H D4N112H OMRON Plastic 1NC/1NO Sharp Roller adj. D50mm PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-112H D4N 0069H D4N112H OMRON Plastic 1NC/1NO Sharp Roller adj. D50mm PG13,5

D4N-112H

D4N 0069H

D4N112H

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller adj. D50mm PG13,5 Limit switch, Adjustable roller lever, form lock (metal lever, rubber roller), 1NC/1NO (snap-action), 1NC/1NO (snap-action), Pg13.5 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety position switch is an essential component in machine safety engineering, offering reliable monitoring of moving guards, gates, and protective covers. The Omron D4N-112H features an adjustable roller lever actuator and a rugged plastic body built to withstand demanding industrial environments. Engineers specify these switches to fulfill machine interlocking requirements and ensure operator protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Adjustable roller lever
  • Type of electric connection (EF003961): Cable entry PG
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingPlasticActuator typeAdjustable roller leverActuator detailForm lock, Metal lever, Rubber rollerConnection methodTerminal blockConduit sizePG13.5Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
