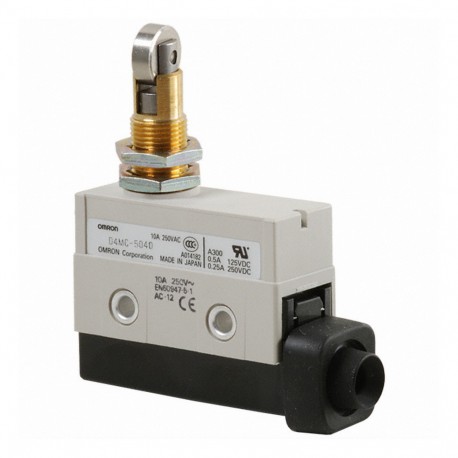

OMRON D4MC-5040 D4MC-5040 D4MC5039C D4MC5040 OMRON Sealed Plunger roller plunger cross-panel Mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4MC-5040 D4MC5039C D4MC5040 OMRON Sealed Plunger roller plunger cross-panel Mounting

D4MC-5040

D4MC5039C

D4MC5040

OMRON

10 Pcs.

Sealed Plunger roller plunger cross-panel Mounting Enclosed switch, panel mount cross roller plunger, SPDT, 10 A

Automation > End switch
D4MC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron sealed plunger roller plunger cross-panel mounting device (D4MC-5040) is an electromechanical component utilized to interrupt or establish electrical circuits based on the physical motion of automation components.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.25 A

More info

▲
Features

Limit switches with mounting shape and pitch variations

Extending the standard and compact limit switches the D4E, D4MC, WL, ZE and ZV families provide mounting alternatives.

  • The WL standard size provides a popular mounting shape and pitch in many countries
  • The D4E and D4MC compact size provide alternative housing sizes and mounting pitches
  • The ZE compact size provides diagonal mounting holes
  • The ZV compact sizes provides base mounting holes
