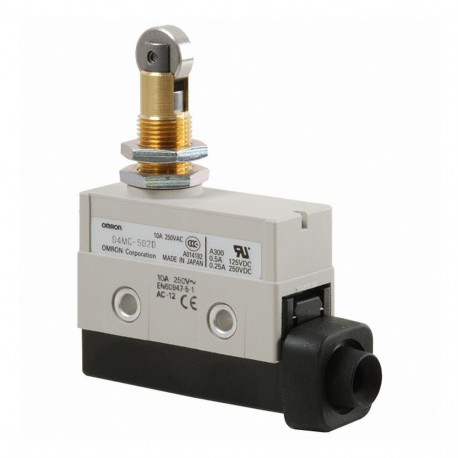

OMRON D4MC-5020 D4MC-5020 D4MC5020B D4MC5020 OMRON Sealed Plunger roller plunger panel Mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4MC-5020 D4MC5020B D4MC5020 OMRON Sealed Plunger roller plunger panel Mounting

D4MC-5020

D4MC5020B

D4MC5020

OMRON

10 Pcs.

Sealed Plunger roller plunger panel Mounting Enclosed switch, panel mount roller plunger, SPDT, 10 A

Automation > End switch
D4MC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust position-detecting component, the Omron D4MC-5020 sealed plunger roller plunger panel mounting limit switch is designed for industrial control cabinets and heavy machinery. These devices provide accurate switching signals whenever a moving part reaches a specific physical coordinate within an automated process. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.5 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.25 A

More info

▲
Features

Limit switches with mounting shape and pitch variations

Extending the standard and compact limit switches the D4E, D4MC, WL, ZE and ZV families provide mounting alternatives.

  • The WL standard size provides a popular mounting shape and pitch in many countries
  • The D4E and D4MC compact size provide alternative housing sizes and mounting pitches
  • The ZE compact size provides diagonal mounting holes
  • The ZV compact sizes provides base mounting holes
